SPECIFICATIONS

Band Width: 100-349MHz

Brand Name: Hantek

Certification: CE

DIY Supplies: ELECTRICAL

Digital Channels: 2

Display Resolution: 800*480 Pixels

Display Size: 7 Inches & Above

Max Waveform Capture Rate: 30,000wfm/s

Model Number: dso2c10/dso2d10/dso2c15/dso2d15

Features:

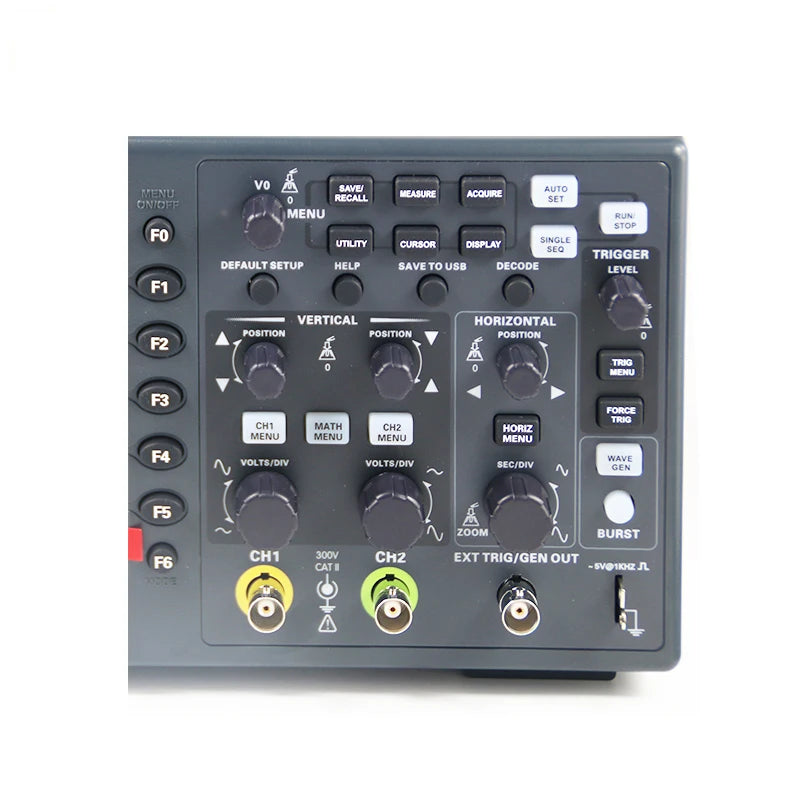

1) 2 channels, both are respectively controlled by independent knobes;

2) 100 MHZ, 150MHZ analog channel bandwidth;

3) 1 GSa/s real-time sample rate;

4) 8M memory depth;

5) Vertical range 2mV/div ~ 10V/div;

6) Built-in 1 CH 25MHz waveform generator(ONLY DSO2D10,DSO2D15);

7) Vertical resolution : 8bit;

8) Trigger: Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Delay, UART, LIN, CAN, SPI, IIC;

9) CAN decode and protocol analysis: RS232/UART、I2C、SPI、CAN、LIN

10) Can save as multiple data formats, such as setting, waveform, referance waveform, CSV, picture;

11) 5 bits digital voltage meter and 6 bits hardware frequency indicator function;

12) 32 kinds of auto measurements with statistics, real-time statistics of maxmum, minimum, standrad deviation and etc.;

13) 2 sets of digital voltmeter;

14) Support threshold testing, free measurements within the screen;

15) Abundant SCPI remote command control;

16) Many external interface: USB Host/Device.

NOTE:DSO2C10 and DSO2C15 have no waveform generator function!

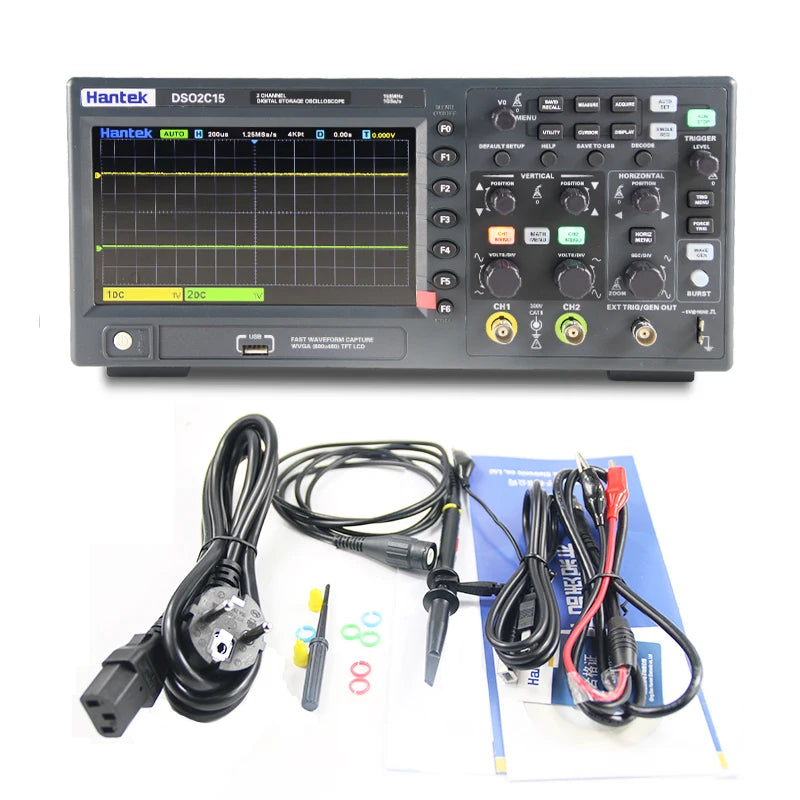

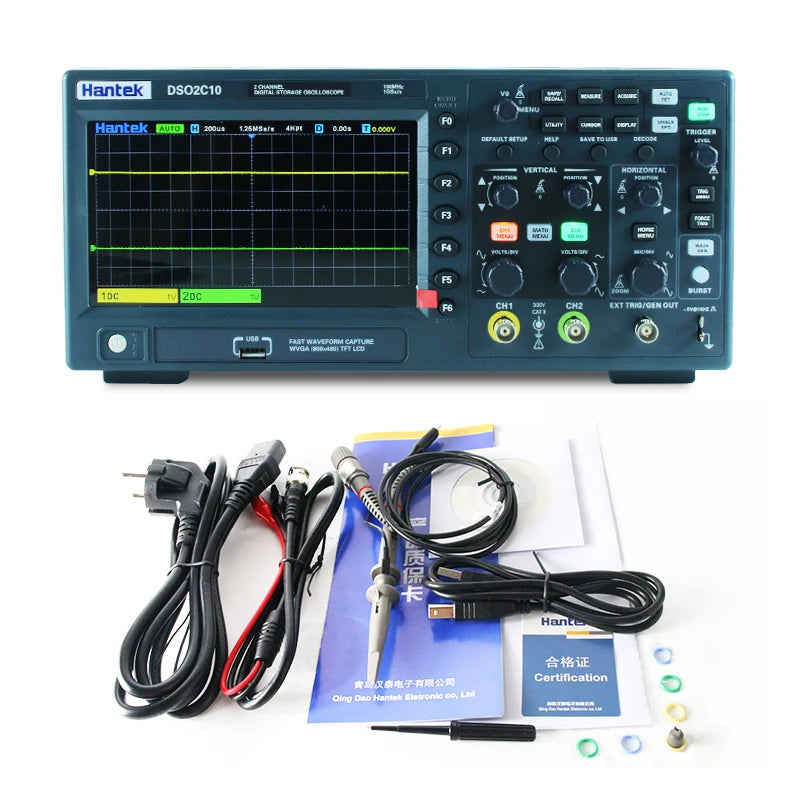

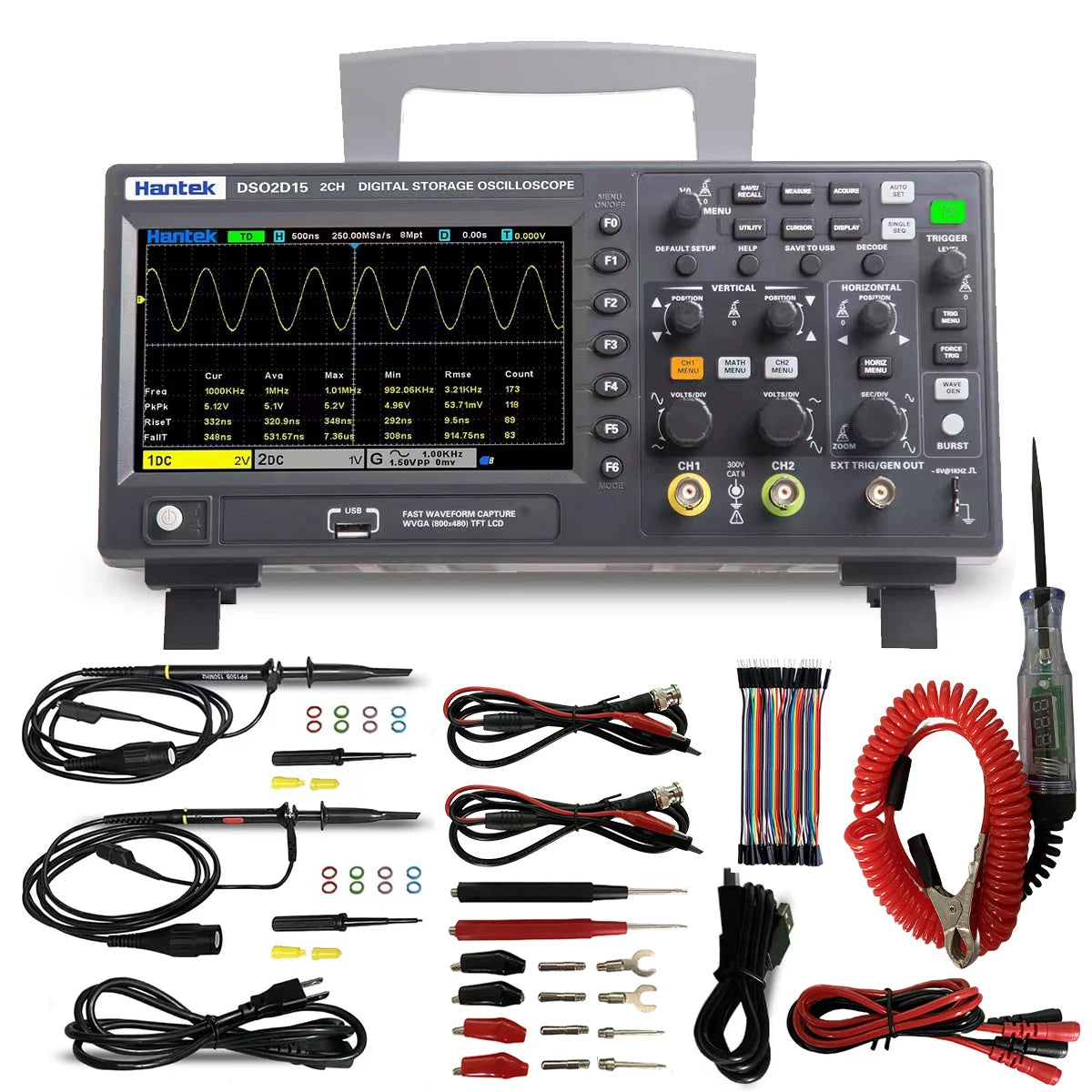

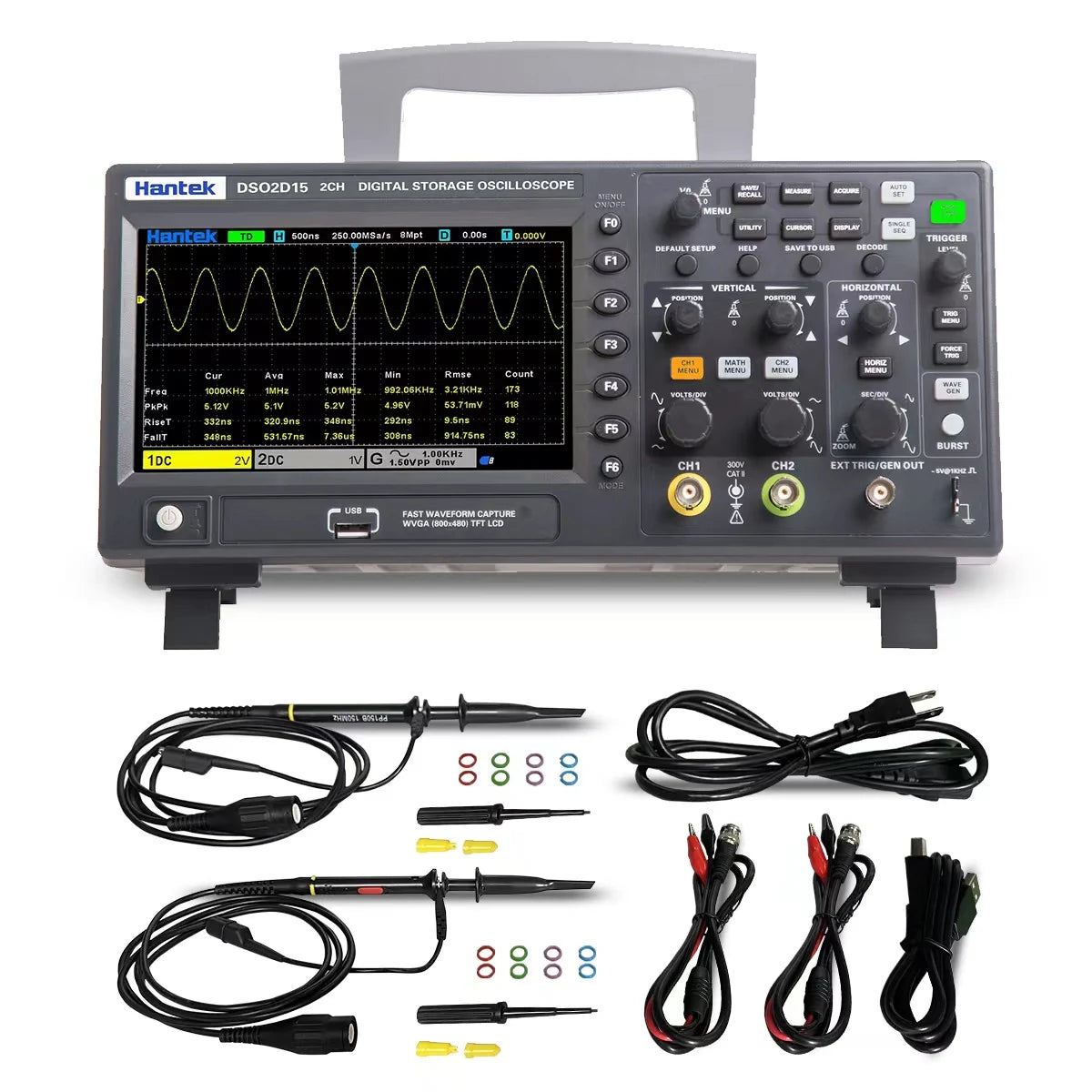

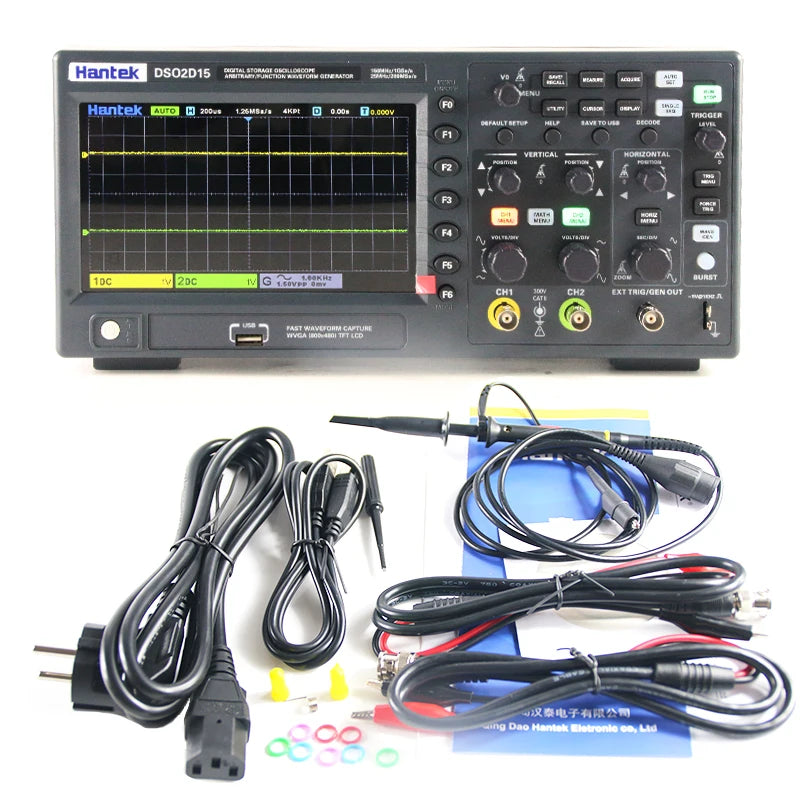

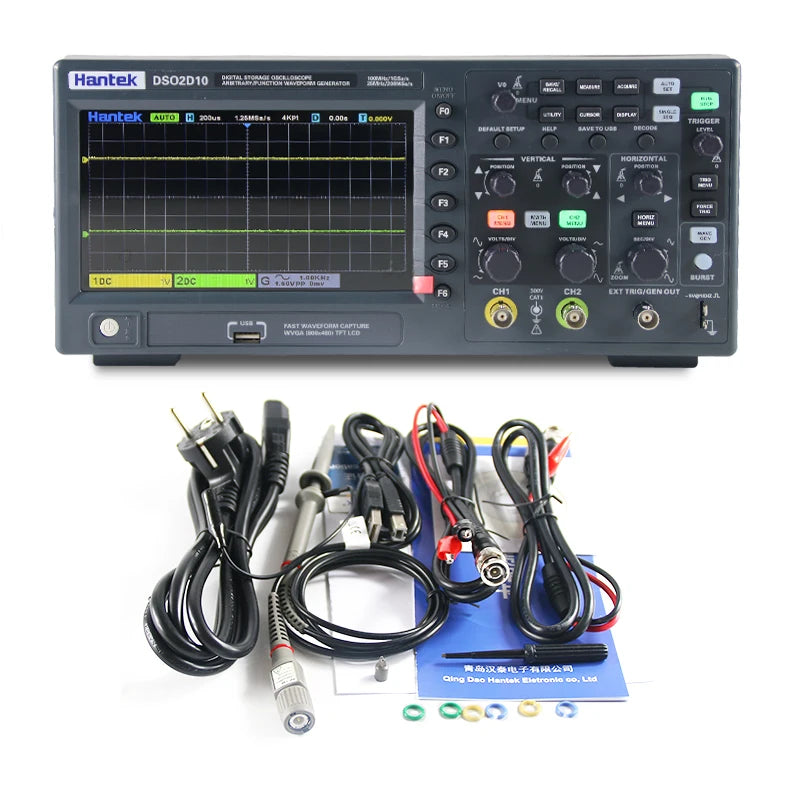

Packge included:

DSO2D10 DSO2D15:

1 x Oscilloscope

1 x  Probe

1 x USB Cable

1 x Power line

2 x BNC to alligator clip test lead
